In industrial piping systems, isolation is a crucial requirement for maintenance, repairs, and safety. One of the most effective components for achieving this is the Spectacle Blind Flange. Designed for secure and efficient pipeline isolation, these specialized flanges provide a reliable method to control the flow of liquids and gases. In this blog, we will explore how Spectacle Blind Flanges work, their benefits, and their applications in various industries.
What Are Spectacle Blind Flanges?

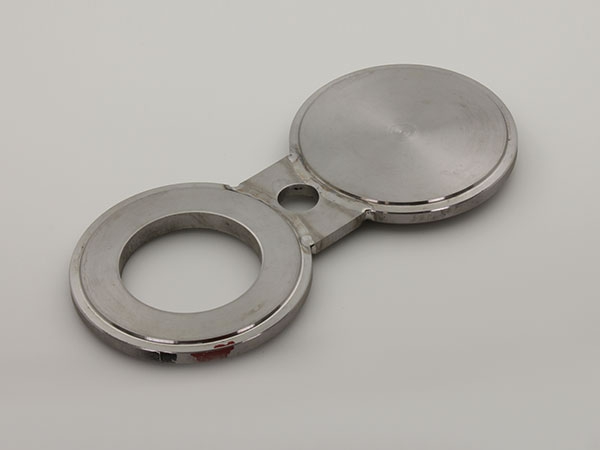

Spectacle Blind Flanges are a type of flange used to either completely stop or allow the flow of fluid in a pipeline. They consist of two metal discs connected by a small section of metal. One disc is solid (blind), while the other has a hole matching the pipe’s diameter (spacer). The name “spectacle” comes from their resemblance to eyeglasses.
How They Work
Spectacle Blind Flanges are installed between two pipe flanges. By rotating the flange, the operator can either allow fluid to pass through the pipeline (using the open section) or completely block the flow (using the solid section). This makes them ideal for maintenance and inspection activities.
Benefits of Using Spectacle Blind Flanges
1. Enhanced Pipeline Isolation
The primary purpose of Spectacle Blind Flanges is to provide a secure way to isolate sections of a pipeline. This is essential when performing maintenance or repairs to prevent leakage and contamination.
2. Improved Safety
In industries dealing with hazardous substances, accidental leaks can lead to dangerous situations. Spectacle Blind Flanges ensure complete shutdown when required, protecting workers and equipment.
3. Cost-Effective Maintenance
Using Spectacle Blind Flanges helps reduce the cost of shutting down entire systems for maintenance. Instead, only specific sections can be isolated, saving time and operational expenses.
4. Durability and Strength
Manufactured from high-quality materials such as stainless steel, carbon steel, and alloy steel, Spectacle Blind Flanges are designed to withstand high pressures and temperatures, making them suitable for demanding industrial applications.
5. Easy Installation and Operation
With a simple rotating mechanism, these flanges offer an efficient way to control flow. Operators can switch between open and closed positions without removing the entire flange assembly.
Common Applications of Spectacle Blind Flanges
1. Oil & Gas Industry
Spectacle Blind Flanges are widely used in oil refineries and gas processing plants to isolate pipelines during maintenance and prevent the risk of leaks.
2. Chemical Processing Plants
In chemical plants, these flanges help manage fluid flow, ensuring safety when handling corrosive and hazardous substances.
3. Power Generation Facilities
Power plants use Spectacle Blind Flanges to maintain high-pressure steam and water pipelines, providing secure flow control during maintenance.
4. Water Treatment Plants
They help regulate the flow of water and chemicals in treatment plants, allowing for efficient processing and system control.
5. Marine and Shipbuilding Industry
Ships and offshore platforms use these flanges for isolating fuel and water pipelines, ensuring safe operation in challenging environments.
Choosing the Right Spectacle Blind Flange
When selecting a Spectacle Blind Flange, consider the following factors:
- Material: Choose a material compatible with the type of fluid being transported. Stainless steel is preferred for corrosive environments.
- Size and Pressure Rating: Ensure the flange matches the pipeline specifications.
- Industry Standards: Check compliance with ASME, ANSI, and other industry regulations for safety and performance.
Conclusion
Spectacle Blind Flanges play a crucial role in pipeline isolation, offering safety, efficiency, and cost savings in industrial applications. Whether used in oil and gas, power plants, or water treatment facilities, these flanges provide a dependable solution for controlling fluid flow and ensuring maintenance flexibility. Investing in high-quality Spectacle Blind Flanges ensures long-term durability and optimal performance in any piping system.
